Inverter Heat Pump

Mini Pool Heat Pump

Daisy Series

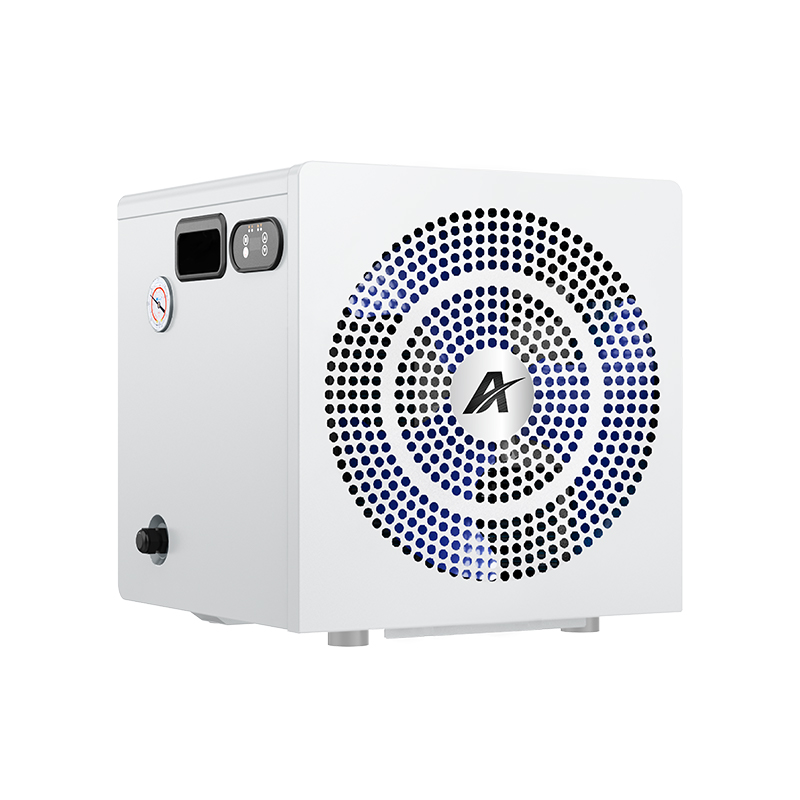

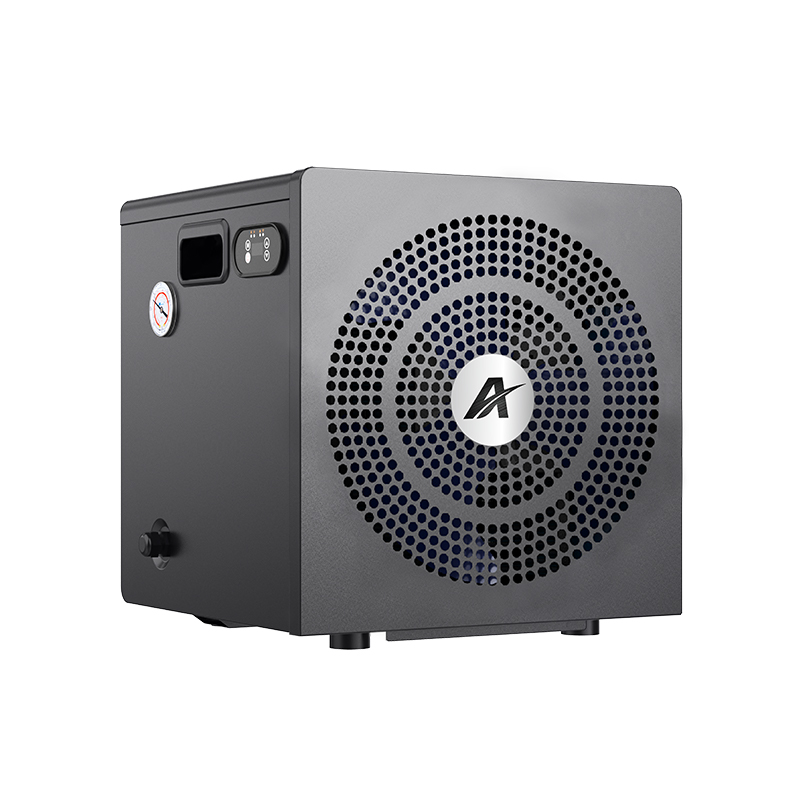

Efficiently heat your small pool or spa with our compact and easy-to-install mini heat pump. Enjoy comfortable swimming temperatures all season long.

Back

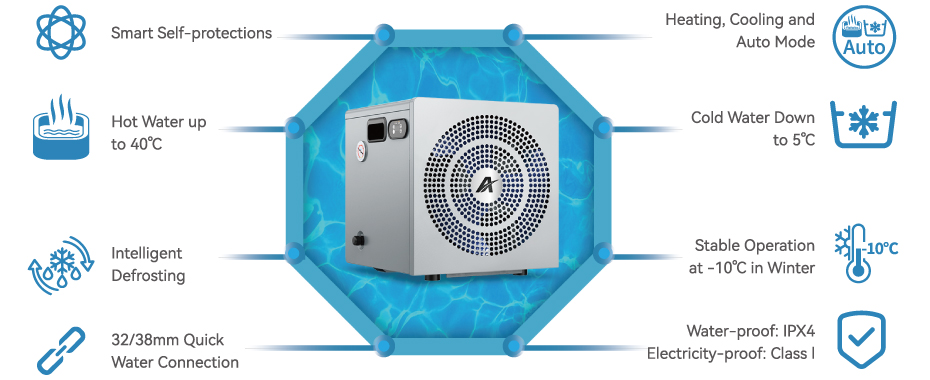

►Features

►3D Full Inverter Technology

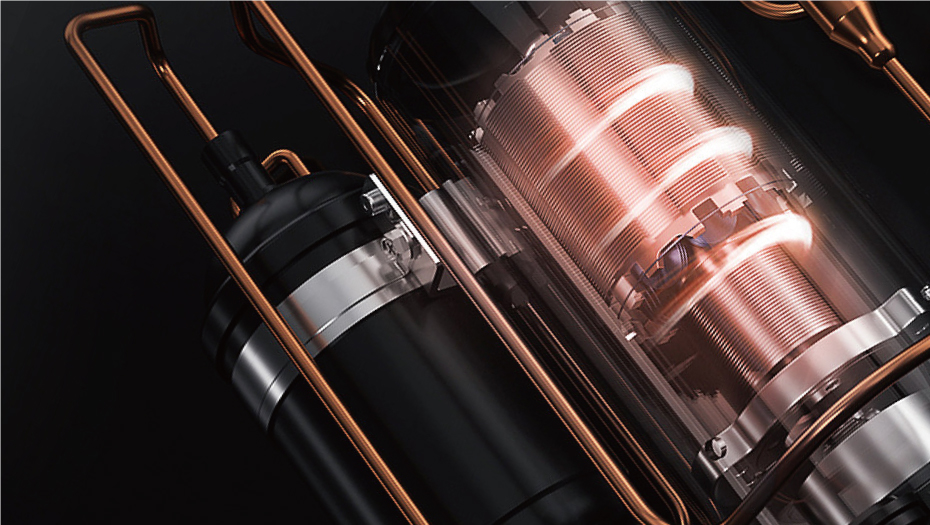

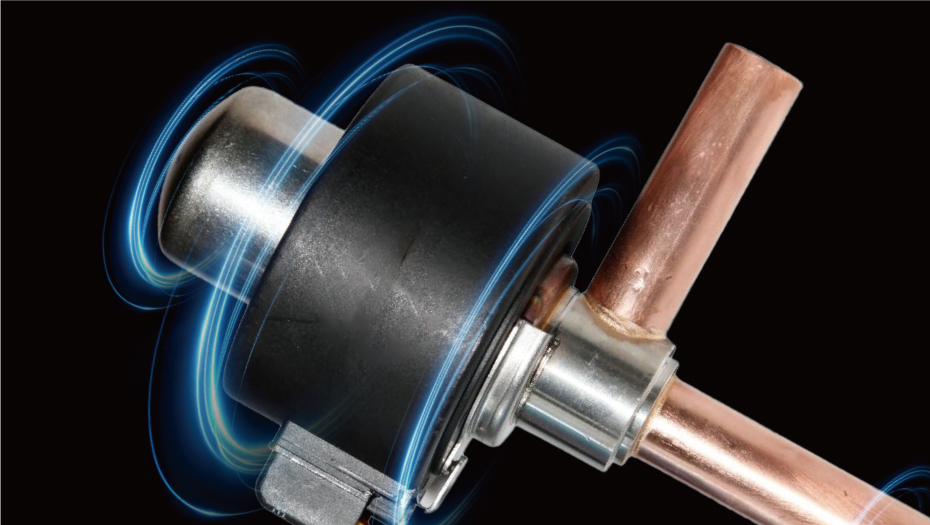

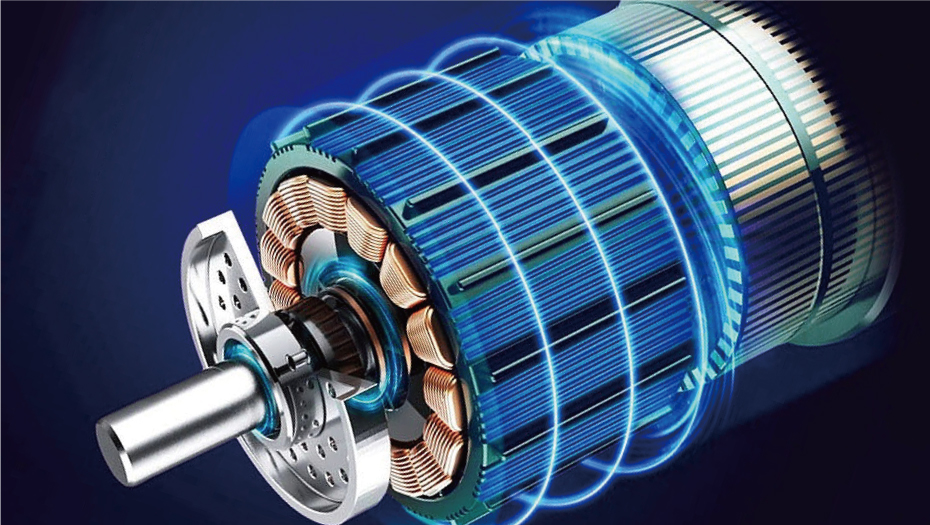

Daisy mini pool heat pumps adopt the inverter compressor, DC fan motor and electronic expansion valve to operate dynamically and achieve the optimal peformance with much more energy saving.

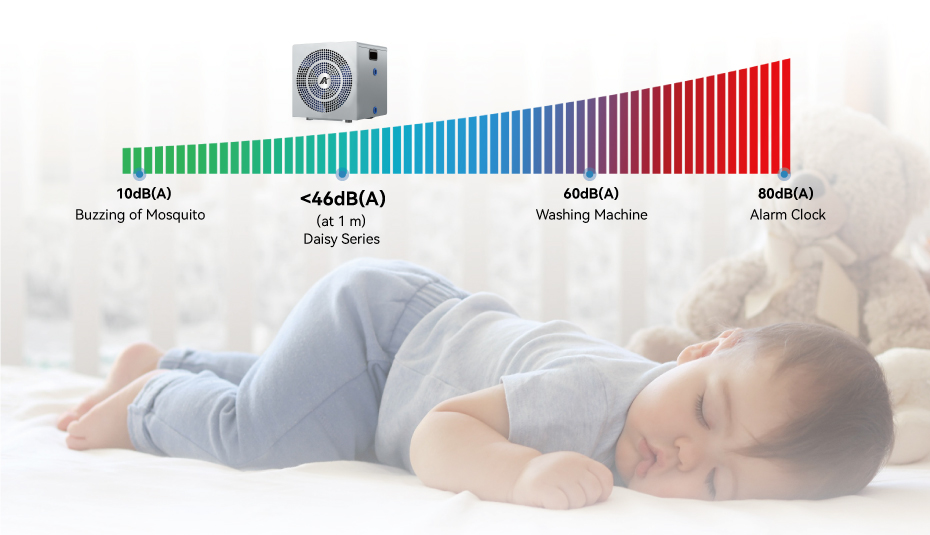

►Quiet Operation

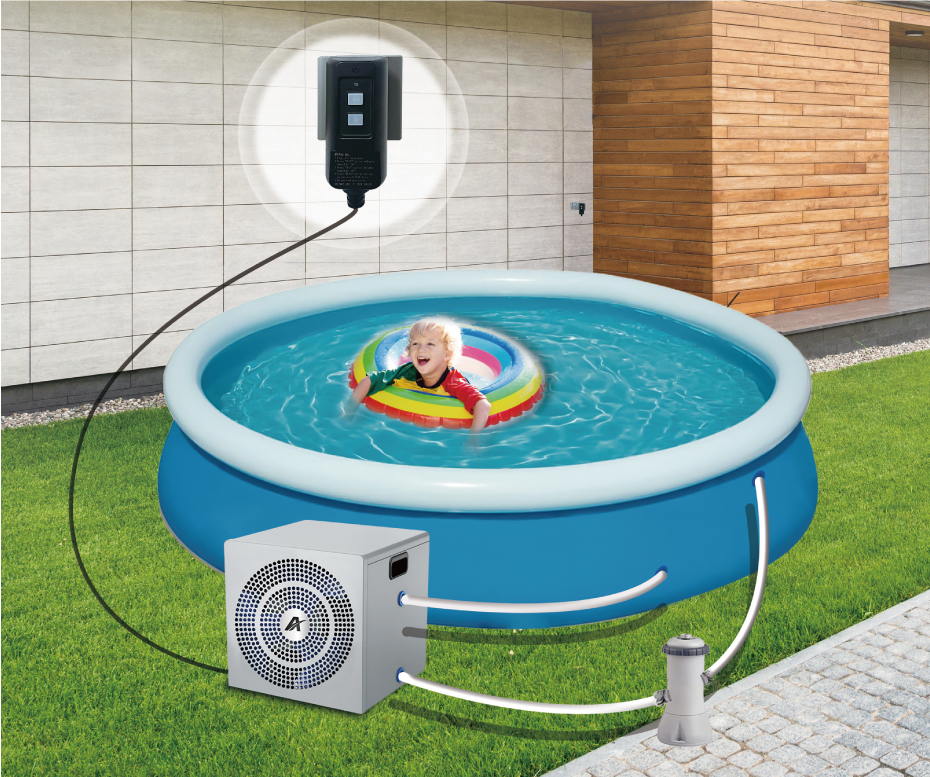

►Plug & Play

Daisy mini pool heat pump can be used very easily without complicated installation. The portable and plug-and-play design makes it adaptable to various applications, such as inflatable pool, hot tub, swim spa, ice bath, etc.

►Built-in WiFi Function

Enjoy your leisure time with Smart Life App to monitor and control your pool temperature anywhere and anytime.

Model：AW-		30YL3-BZ-MD	40YL3-BZ-MD		50YL3-BZ-MD
Advised Pool Size	m³	5~10	8~15		10~20
【Heating 】 Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.
Heating Capacity	kW	1.30~3.15	1.60~4.20		1.90~5.00
Power Input	kW	0.102~0.563	0.125~0.750		0.146~0.833
COP	kW/kW	12.7~5.6	12.8~5.6			13.0~6.0
【Heating 】Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.
Heating Capacity	kW	0.80~2.40	1.10~3.00		1.40~3.60
Power Input	kW	0.114~0.571	0.157~0.714		0.194~0.818
COP	kW/kW	7.0~4.2	7.0~4.2		7.2~4.4
【Cooling 】Ambient Temperature: (DB/WB) 35°C/-; Water Inlet/Outlet Temperature: 30°C/28°C.
Cooling Capacity	kW	0.70~2.00	1.00~2.50		1.50~3.00
Power Input	kW	0.140~0.667	0.200~0.833		0.300~1.000
EER	kW/kW	5.0~3.0	5.0~3.0		5.0~3.0
General Informations
Max. Power Input	kPa	1.0	1.2		1.5
Max. Current	A	4.5	5.4		6.8
Heating Water Temp. Range	℃	9-40	9-40		9-40
Cooling Water Temp. Range	℃	8-28	8-28		8-28
Operating Ambient Temp. Range	℃	-10~43	-10~43		-10~43
Power Supply	/		220-240V~/50Hz
Controller	/	LED Controller
Wi-Fi Function	/	Yes
Refrigerant	/	R32
Compressor Brand/Type	/	GMCC / Rotary
Heat Exchanger	/	Titanium Heat Exchanger
water proof level	/	IPX4
Water Pipe Connection	mm	φ32 or φ38		φ32 or φ38	φ32 or φ38
Water Flow	m³/h	1.5		2	2.5
Water Pressure Drop	kPa	10		11	12
Sound Pressure Level at 1m	dB(A)	<46	<47		<48
Sound Pressure Level at 10m	dB(A)	<30	<31		<32
Net Weight	kg	21	22		24
Net Dimensions(L×W×H)	mm	420×300×430	420×300×430		443×399×437
The sound power level is tested by EN12102
