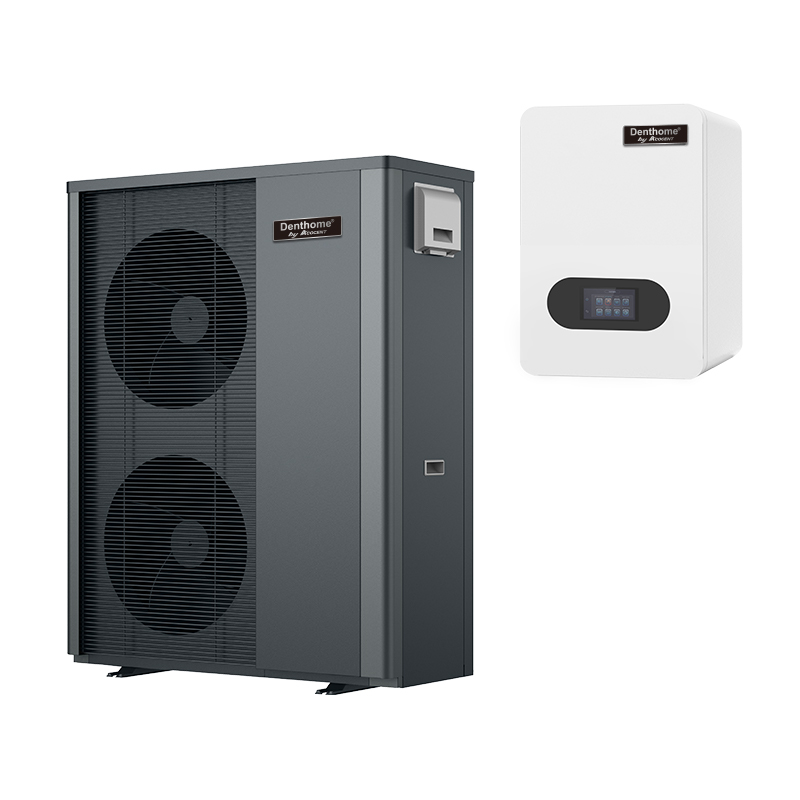

R290 Air-to-Water Hydronic Heat Pump with Hydro box

Maple Series

Save energy and lower your bills with the eco-friendly Acocent R290 Heat Pump. All in one efficient system with a convenient hydro box.
Contact Us
Back

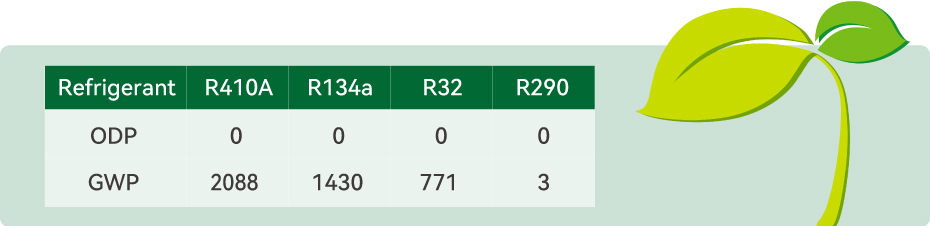

►Natural Refrigerant R290

The use of R290 is increasing due to its low environmental impact and excellent thermodynamic performance. It is non-toxic and has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. It is a great support to reach EU carbon neutrality. What's more, it can help heat pump to achieve a higher water outlet temperature and work at a lower ambient temperature.





►Intelligent Control

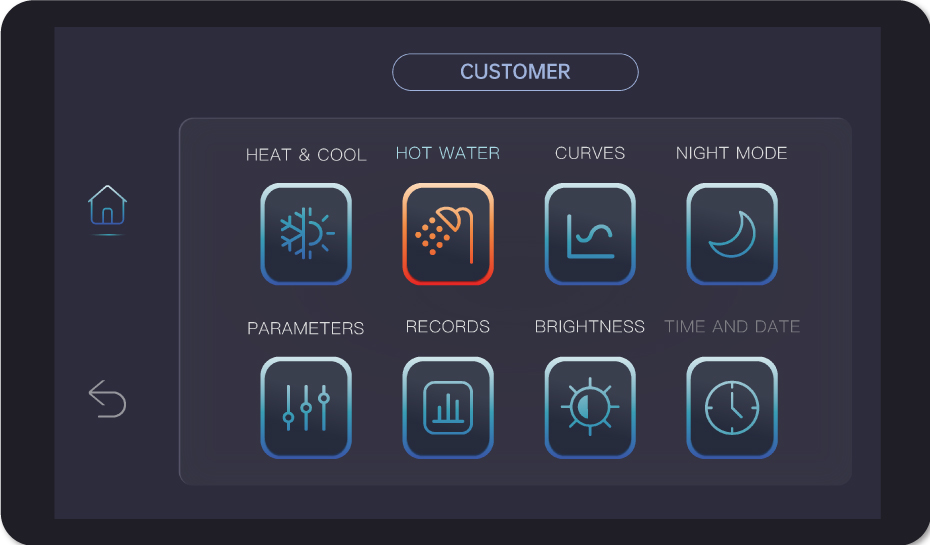

      6-inch Touch Screen Controller

     ♦ User-Friendly Operation
     ♦ Multi-Language Available
     ♦ Heating & Cooling function
     ♦ Timer Setting & Holidays Setting
     ♦ Night Mode

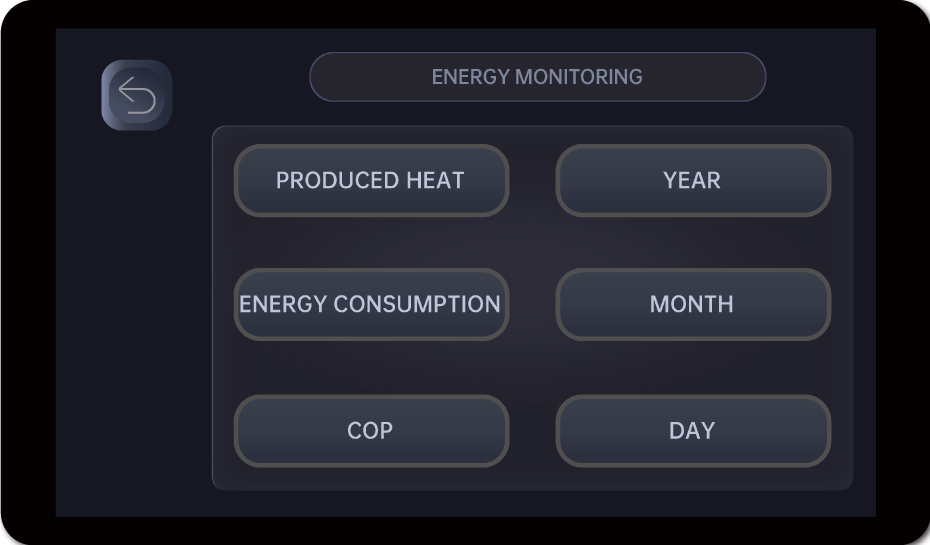

Energy Monitoring

State-of-the-art energy monitoring and management means users have the visibility and freedom to efficiently manage their heat pumps’ power consumption for heating, cooling and sanitary hot water.

►Built-in WiFi

You can set the heating or cooling temperature, timer function and holiday mode by your smart phone anytime and anywhere.



►IOT Function

Resource visibility

Improving operational efficiency

Improving end-user experience

Data-driven insights for quick decision-making

End-to-end, remote monitoring and management of assets/resources

Real-time, predictive and prescriptive insights

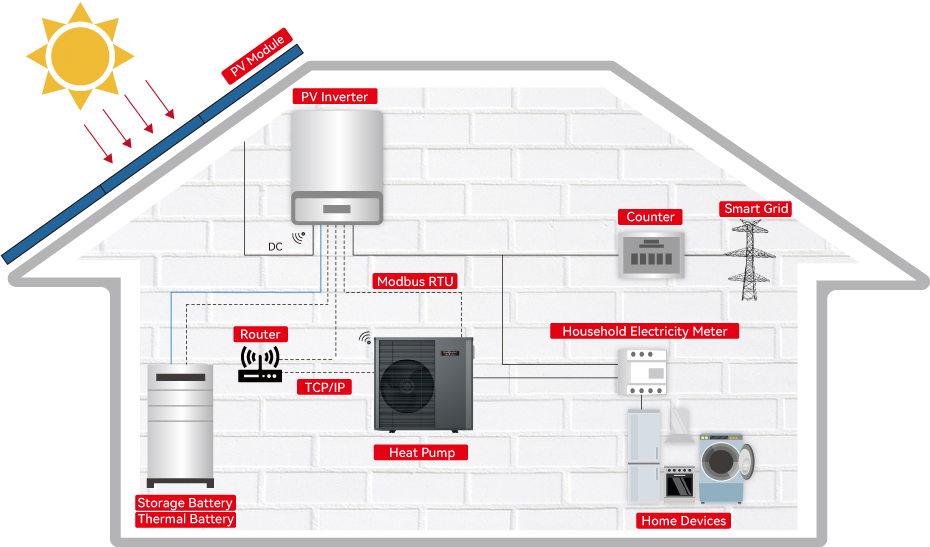

►SG Ready

It’s a function to integrate your unit with the national smart grid, and it becomes more and more popular along with the expanding of the energy-saving policies.
Our heat pumps are controlled by the smart grid signals to maximize the use of household photovoltaic energy to reduce energy expenses.
Additional energy use can be further optimized by adding energy storage systems: accumulators and thermal batteries.

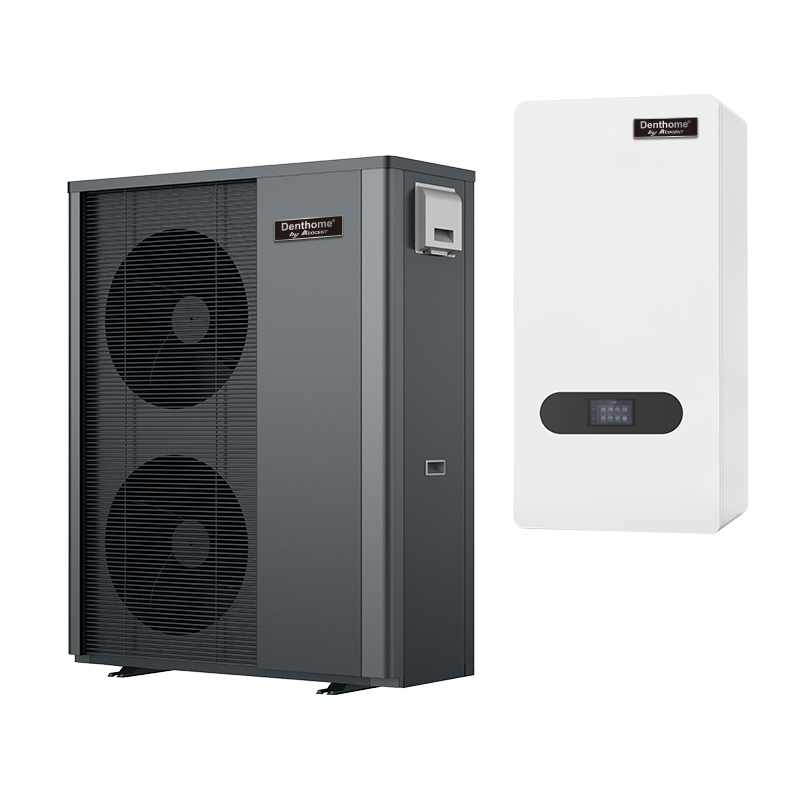

►Installation with Wall-mounted Hydro Box





►Hybrid System Installation

It will optimize between gas and electricity prices and heating demands; Running cost can range between a heat pump and a boiler.

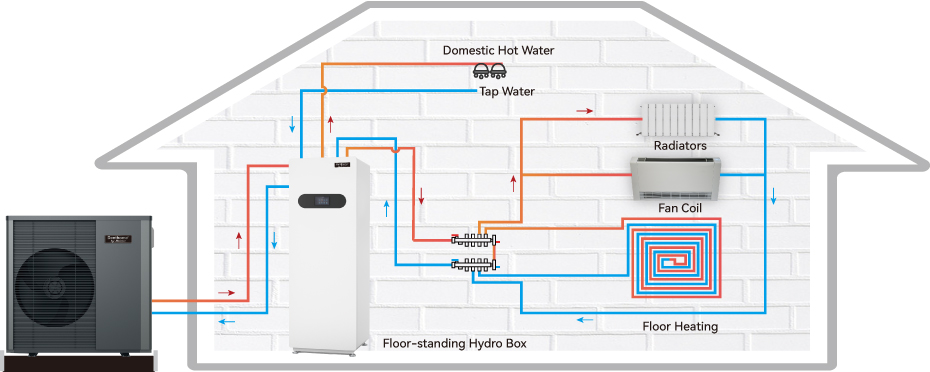

►Installation with Floor-standing Hydro Box



Model ：AW- 65CL2-BZ-D 80CL2-BZ-D   95CL2-BZ-D   120CL2-BZ-D  150CL2-BZ-D 120CL2-SBZ-D 150CL2-SBZ-D 220CL2-SBZ-D
【Space Heating】 Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.
Heating Capacity kW 2.06 ~ 6.46 2.83 ~ 8.13 2.95 ~ 9.35 3.85 ~ 12.22 4.95 ~ 15.23 3.85 ~ 12.22 4.95 ~ 15.23 6.85 ~ 22.1
Power Input kW 0.47 ~ 1.44 0.57 ~ 1.76 0.67 ~ 2.09 0.91 ~ 2.76 1.08 ~ 3.35 0.91 ~ 2.76 1.08 ~ 3.35 1.88 ~ 5.25
COP kW/kW 4.18 ~ 4.80 4.46 ~ 4.92 4.10 ~ 4.67 4.03 ~ 4.59 4.28 ~ 4.62 4.03 ~ 4.59 4.28 ~ 4.62 4.01 ~ 4.52
【Space Heating】 Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 40°C/45°C.
Heating Capacity kW 1.93 ~ 6.09 2.65 ~ 7.62 2.76 ~ 8.75 3.66 ~ 11.62 4.79 ~ 14.78 3.66 ~ 11.62 4.79 ~ 14.78 6.57 ~ 21.2
Power Input kW 0.52 ~ 1.61 0.65 ~ 2.03 0.76 ~ 2.38 0.97 ~ 2.96 1.28 ~ 3.97 0.97 ~ 2.96 1.28 ~ 3.97 2.16 ~ 6.09
COP kW/kW 3.63 ~ 3.92 3.75 ~ 4.23 3.45 ~ 3.78 3.77 ~ 4.13 3.49 ~ 3.86 3.77 ~ 4.13 3.49 ~ 3.86 3.47 ~ 3.82
【Space Heating】 Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C.
Heating Capacity kW 1.82 ~ 5.72 2.47 ~ 7.1 2.57 ~ 8.15 3.48 ~ 11.02 4.65 ~ 14.31 3.48 ~ 11.02 4.65 ~ 14.31 4.96 ~ 19.23
Power Input kW 0.58 ~ 1.77 0.74 ~ 2.29 0.85 ~ 2.66 1.11 ~ 3.36 1.48 ~ 4.58 1.11 ~ 3.36 1.48 ~ 4.58 2.44 ~ 6.90
COP kW/kW 3.07 ~ 3.48 3.25 ~ 3.62 2.95 ~ 3.32 2.98 ~ 3.58 2.88 ~ 3.34 2.98 ~ 3.58 2.88 ~ 3.34 2.80 ~3.25
[Space Heating] Ambient Temp. (DB/WB): -7°C/-8°C, Water Temp. (Inlet/Outlet): 30°C/35°C.
Heating Capacity kW 1.49 ~ 4.67 2.11 ~ 6.06 2.04 ~ 6.46 2.41 ~ 7.63 3.70 ~ 11.4 2.41 ~ 7.63 3.70 ~ 11.4 4.78 ~ 15.4
Power Input kW 0.43 ~ 1.33 0.60 ~ 1.82 0.65 ~ 2.02 0.81 ~ 2.44 1.08 ~ 3.34 0.81 ~ 2.44 1.08 ~ 3.34 1.51 ~ 4.82
COP kW/kW 3.37 ~ 3.81 3.32 ~ 3.72 3.04 ~ 3.52 2.88 ~ 3.43 3.23 ~ 3.67 2.88 ~ 3.43 3.23 ~ 3.67 2.39 ~ 2.70
【Space Heating】 Ambient Temp. (DB/WB): -7°C/-8°C, Water Temp. (Inlet/Outlet): 40°C/45°C.
Heating Capacity kW 1.38 ~ 4.36 2.06 ~ 5.93 1.96 ~ 6.22 2.35 ~ 7.47 3.56 ~ 10.98 2.35 ~ 7.47 3.56 ~ 10.98 4.40 ~ 14.5
Power Input kW 0.49 ~ 1.52 0.64 ~ 2 0.74 ~ 2.31 0.94 ~ 2.86 1.23 ~ 3.84 0.94 ~ 2.86 1.23 ~ 3.84 1.75 ~ 5.65
COP kW/kW 2.71 ~ 2.92 2.87 ~3.23 2.54 ~ 2.89 2.41 ~ 2.71 2.68 ~ 2.93 2.41 ~ 2.71 2.68 ~ 2.93 2.39 ~ 2.70
【Space Heating】 Ambient Temp. (DB/WB): -7°C/-8°C, Water Temp. (Inlet/Outlet): 50°C/55°C.
Heating Capacity kW 1.29 ~ 4.05 2.02 ~ 5.8 1.88 ~ 5.97 2.31 ~ 7.31 3.56 ~ 10.98 2.31 ~ 7.31 3.43 ~ 10.56 4.40 ~ 14.2
Power Input kW 0.56 ~ 1.71 0.70 ~ 2.17 0.83 ~ 2.59 1.08 ~ 3.27 1.23 ~ 3.84 1.08 ~ 3.27 1.40 ~ 4.33 1.97 ~ 6.35
COP kW/kW 2.20 ~ 2.57 2.53 ~ 2.98 2.01 ~ 2.53 2.04 ~ 2.64 2.68 ~ 2.93 2.04 ~ 2.64 2.25 ~ 2.74 2.02 ~ 2.58
【Space Cooling】 Ambient Temp. (DB/WB): 35°C/24°C, Water Temp. (Inlet/Outlet): 12°C/7°C.
Cooling Capacity kW 1.51 ~ 4.32 1.83 ~ 5.24 1.90 ~ 5.95 2.73 ~ 7.82 3.65 ~ 10.3 2.73 ~ 7.82 3.65 ~ 10.3 5.75～16.3
Power Input kW 0.52 ~ 1.62 0.61 ~ 1.85 0.68 ~ 2.26 0.91 ~ 2.86 1.15 ~ 3.98 0.91 ~ 2.86 1.15 ~ 3.98 2.56～7.05
EER kW/kW 2.54 ~ 2.92 2.75 ~ 3.02 2.65 ~ 2.93 2.65 ~ 3.02 2.5 ~ 3.11 2.65 ~ 3.02 2.5 ~ 3.11 2.5 ~ 3.02
SCOP (W35℃/W55℃) / 4.79/3.7 4.94/3.89 4.78/3.7 4.92/3.87 4.89/3.85 4.92/3.87 4.89/3.85 4.69/3.63
Rated Current A 2.2 ~ 6.9 2.7 ~ 8.0 2.8 ~ 9.6 4.1 ~ 12.4 4.7 ~ 19.5 1.40 ~ 5.2 2.0 ~ 8.1 2.8 ~ 12.0
Max. Operating Current A 9 12 14 18 25 11.5 11.5 16.0
Power Supply / 220-240V~/50Hz 380-415V/3N~/ 50Hz
Compressor / Inverter Compressor Twin Rotary
Condenser / Brazed Plate Heat Exchanger
Water Flow m³/h 0.8~1.3 0.9~1.8 0.9~1.8 1.5~3.2 1.5~3.2 1.5~3.2 1.5~3.2 1.45~3.8
Internal Pressure Drop At Nominal Flow kPa 16 21 23 25 25 25 25 30
Nominal Air Flow m³/h 2700 2900 3000 3350 5500 3350 5500 7000
Nominal Fan Output W 70 70 75 80 150 80 150 160
Max. Outlet Water Temp. ℃ 75
Dimensions (L×W×H) mm 1060×420×850 1060×420×1014 1060×420×1370 1060×420×1014 1060×420×1370 1565×1060×420
Pipe Connector inch 1″ external thread
Net Weight kg 92 106 106 112 132 112 132 162
ErP Level(35℃) / A+++ A+++ A+++ A+++ A+++ A+++ A+++ A+++
ErP Level(55℃) / A++ A++ A++ A++ A++ A++ A++ A++
Operating Ambient Temp. Range ℃ Heating : -25~46
DHW: -25~46
Cooling : 10~45
Sound Power Level LWA dB(A) 53 55 57 59 59 58 59 62
Sound Pressure Level at 1m dB(A) 42 43 48 50 51 50 51 54

The above data are tested by EN14825. A7/W35℃ means air temperature is 7℃,outlet water temperature is 35℃.

The sound power level is tested by EN12102.





Model ：AW- JK-P1 JK-P2
Power Supply 220-240V~/50Hz

 380-415V/3N~/50Hz
Wi-Fi Module Yes Yes
Touch Screen Controller 6 inch 6 inch
Dimensions（L× W×H） 350×180×300mm 350×180×300mm



Internal View of Wall-mounted Hydro Box

Model ：AW- 30-SL-P1 90-SL-P2
Power Supply 220-240V~/50Hz

 380-415V/3N~/50Hz
Buffer Tank 18L 18L
Expansion Tank 8L 8L
Primary Pump Yes Yes
Secondary Pump Yes Yes
3-way Valve Yes Yes
Aux. Heater 3kW 9kW
WiFi Module Yes Yes
Touch Screen Controller 6inch 6inch
Heating Water Connection G1” G1”
DHW Connection G1” G1”
Dimensions (L×W×H) 450x360x950mm 450x360x950mm



Internal View of Floor-standing Hydro Box

Model ：AW- 30-200-NSL-P1 90-200-NSL-P2
Power Supply 220-240V~/50Hz

380-415V/3N~/50Hz

DHW

 200L 200L
Buffer Tank 26L 26L
Expansion Tank 8L 8L
Primary Pump Yes Yes
Secondary Pump Yes Yes
3-way Valve Yes Yes
Aux. Heater 3kW 9kW
WiFi Module Yes Yes
Touch Screen Controller 6inch 6inch
Heating Water Connection G1” G1”
DHW Connection G1” G1”
Dimensions(L×W×H) 665x665x1870mm 665x665x1870mm
